Case Study · Industrial, Logistics & Distribution
Two-Floor Commercial Structured Cabling Project in Auburndale, FL
Two-floor structured cabling deployment in Auburndale, FL with three patch panels, column EMT pathways and extensive Cat6 connectivity.
Project Gallery
Inside the Installation
Project Overview
Two-floor structured cabling deployment with three patch panels and extensive Cat6 connectivity. Cabled 32 cubicles, private offices and a time clock across two office floors, terminated at a wall-mount IDF with short-patch dressing. Column EMT pathways bring cabling cleanly from ceiling to workstation clusters.
Services delivered on this project: Structured Cabling.
Industry: Industrial, Logistics & Distribution — see how we support industrial facilities across Florida.
Verified Project Scope
- Two-floor structured cabling deployment with three patch panels and extensive Cat6 connectivity
- Cabling for 32 cubicles, private offices and a time clock

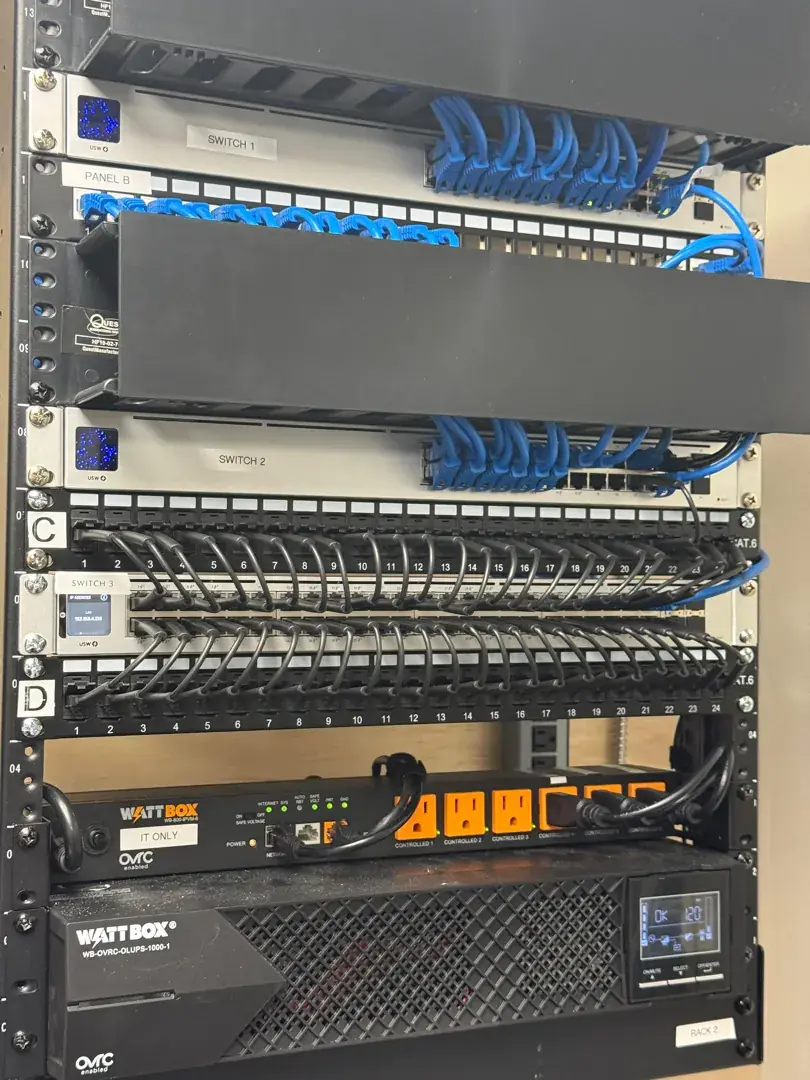

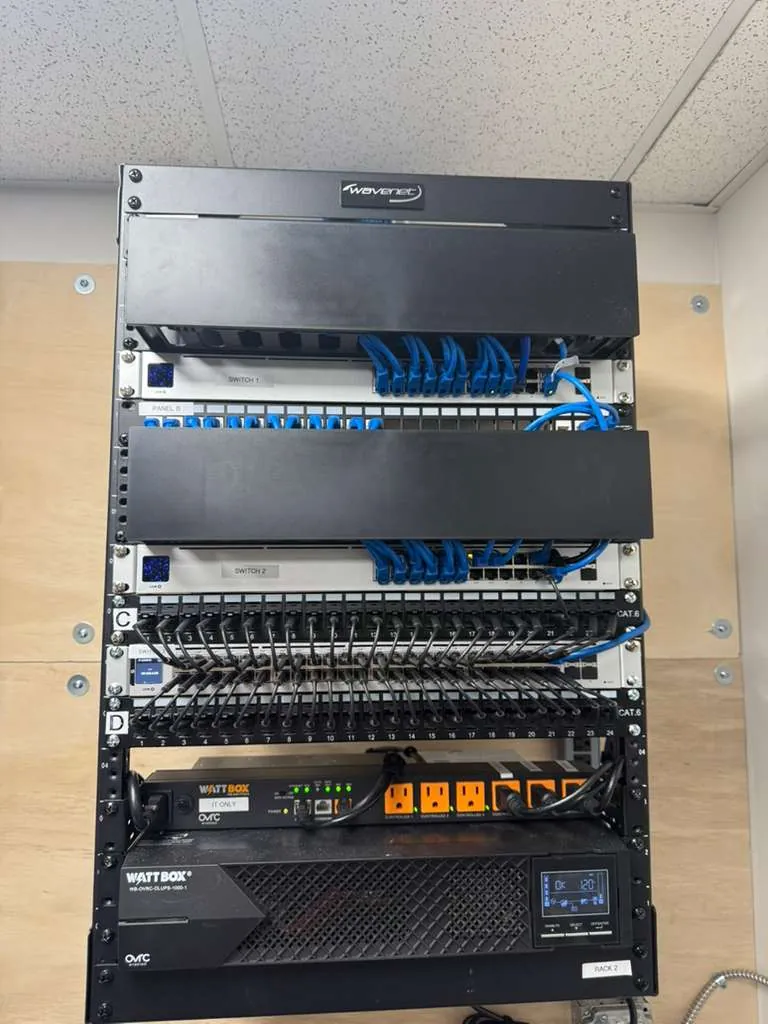

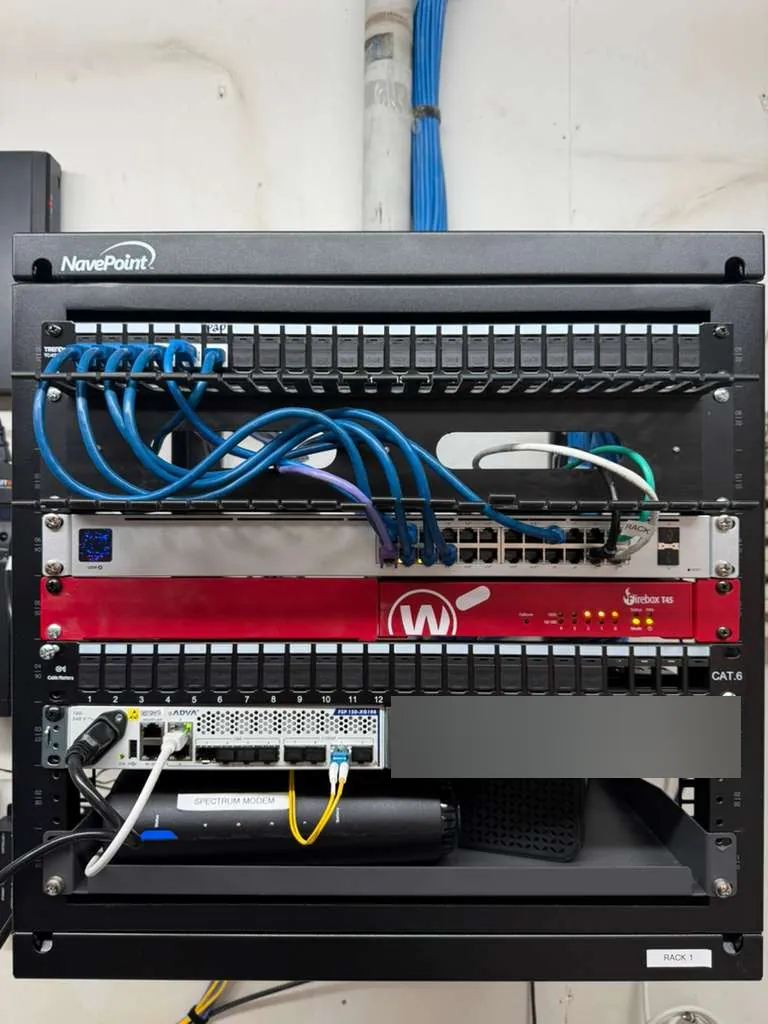

- 3 x 24-port patch panels at a wall-mount IDF with short-patch dressing
- 34 furniture faceplates and 9 Panduit flush faceplates

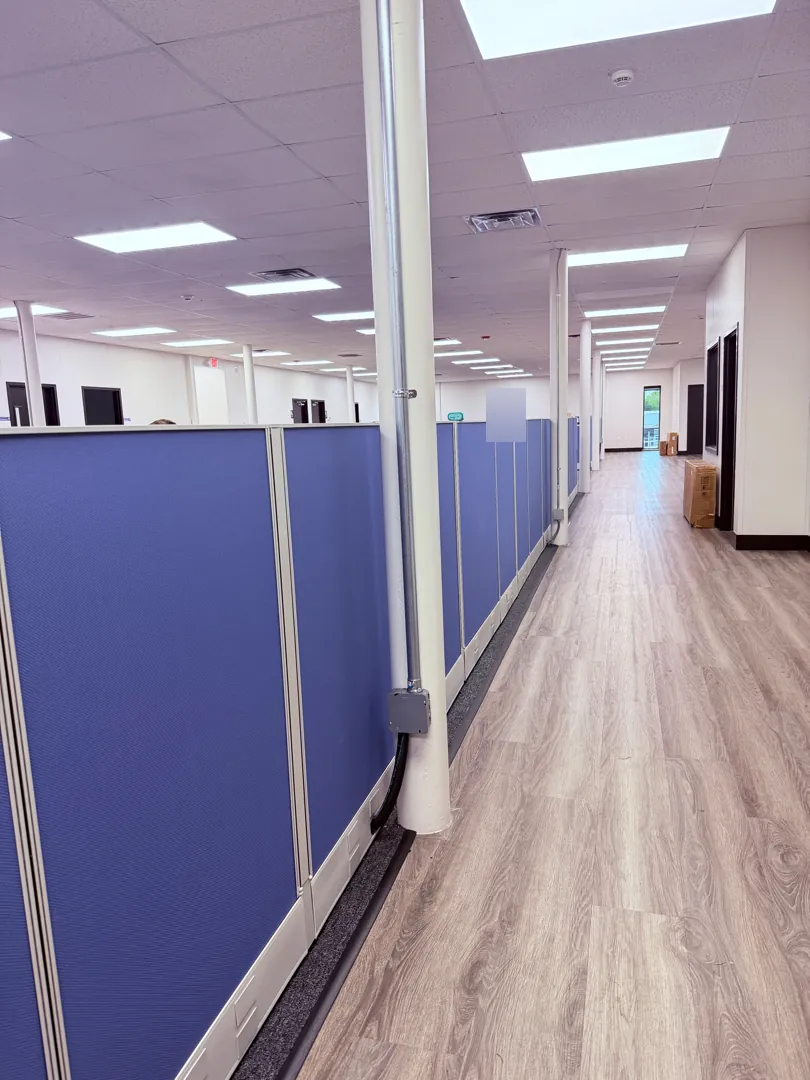

- 4 EMT column pathways from ceiling to workstation clusters
- 55 J-hooks
- 14,000 ft of Cat6 supplied
Platforms & Manufacturers
Systems Delivered
