Case Study · HOA & Condominiums
Community-Wide UniFi Surveillance & Wireless Backbone in Groveland, FL
Multi-building UniFi surveillance deployment across four amenity buildings in Groveland, FL, with PtP wireless, Wi-Fi, PoE switching and distributed recording.
Project Gallery
Inside the Installation
Project Overview
Multi-building UniFi surveillance deployment across four amenity buildings with PtP wireless, Wi-Fi, PoE switching and distributed recording. Wireless PtP bridges link the Cabana, Athletic Center and Sports Pavilion back to Magnolia House; each building received its own recorder, PoE switching, patch panel and rack. All drops were labeled, terminated and tested; APs and AI horn speakers were added for coverage and deterrence.
Services delivered on this project: Security Camera Systems, Network & Infrastructure, Structured Cabling and Commercial Paging & Background Music.
Industry: HOA & Condominiums — see how we support HOA and condominium facilities across Florida.
Verified Project Scope
- Multi-building UniFi surveillance deployment across four amenity buildings with PtP wireless, Wi-Fi, PoE switching and distributed recording
- UniFi Protect G6 Bullet, G6 Pro 360, G6 180 and AI Turret cameras

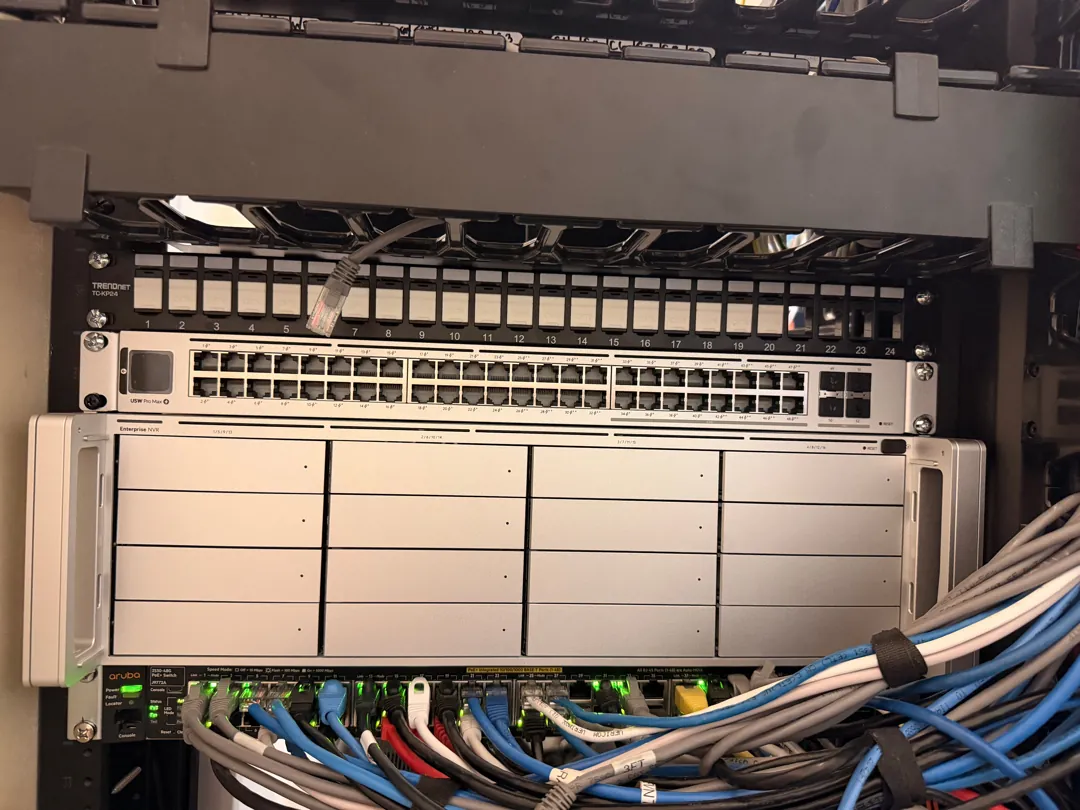

- 4 recorders (1 Enterprise NVR + 3 UNVR) with 4 x 24TB and 2 x 16TB enterprise drives
- 3 AI horn speakers for deterrence
- 4 Wi-Fi 7 access points (3 U7 Pro, 1 U7 Long-Range)
- 5 PoE switches (2 Pro Max 48 PoE, 2 Pro Max 16 PoE, 1 Pro 8 PoE)

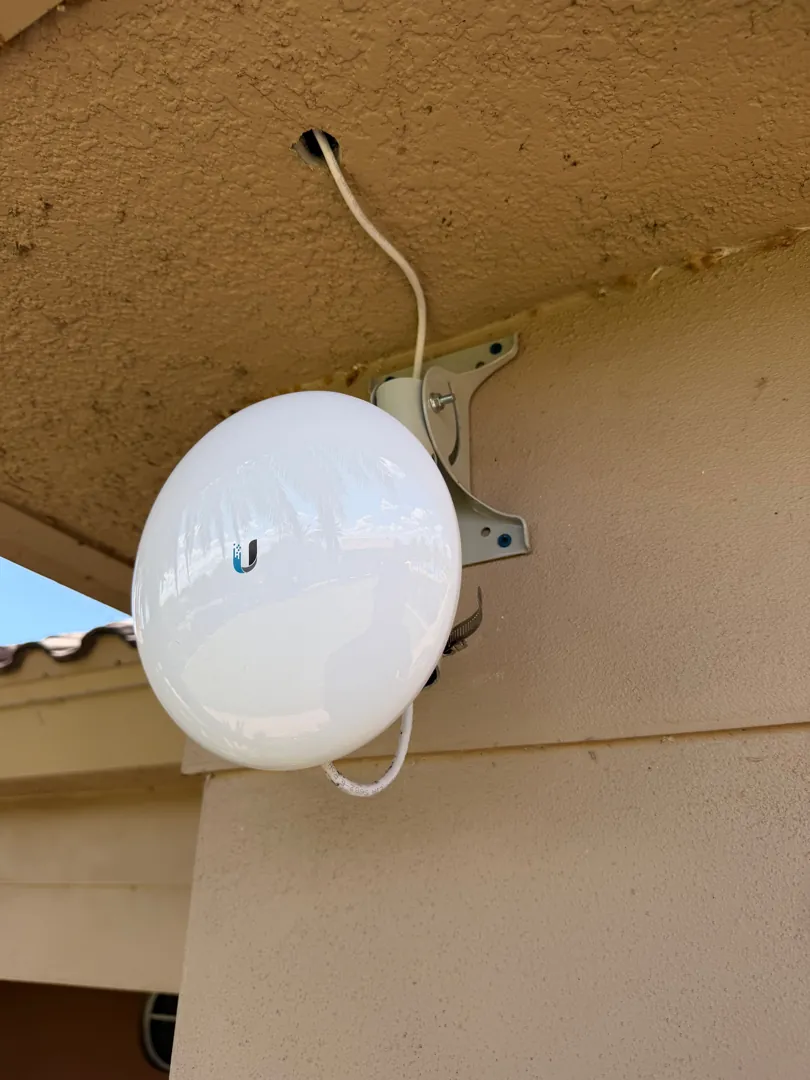

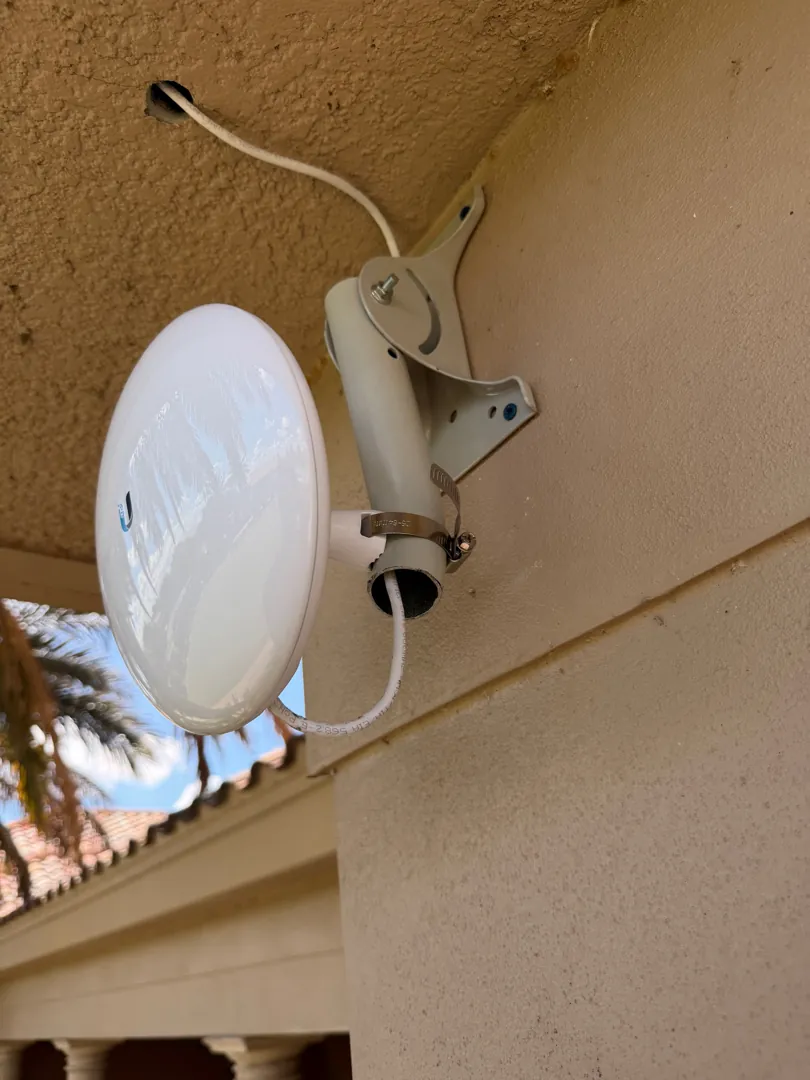

- 6 airMAX NanoStation 5AC point-to-point radios
- 6 Ethernet surge protectors

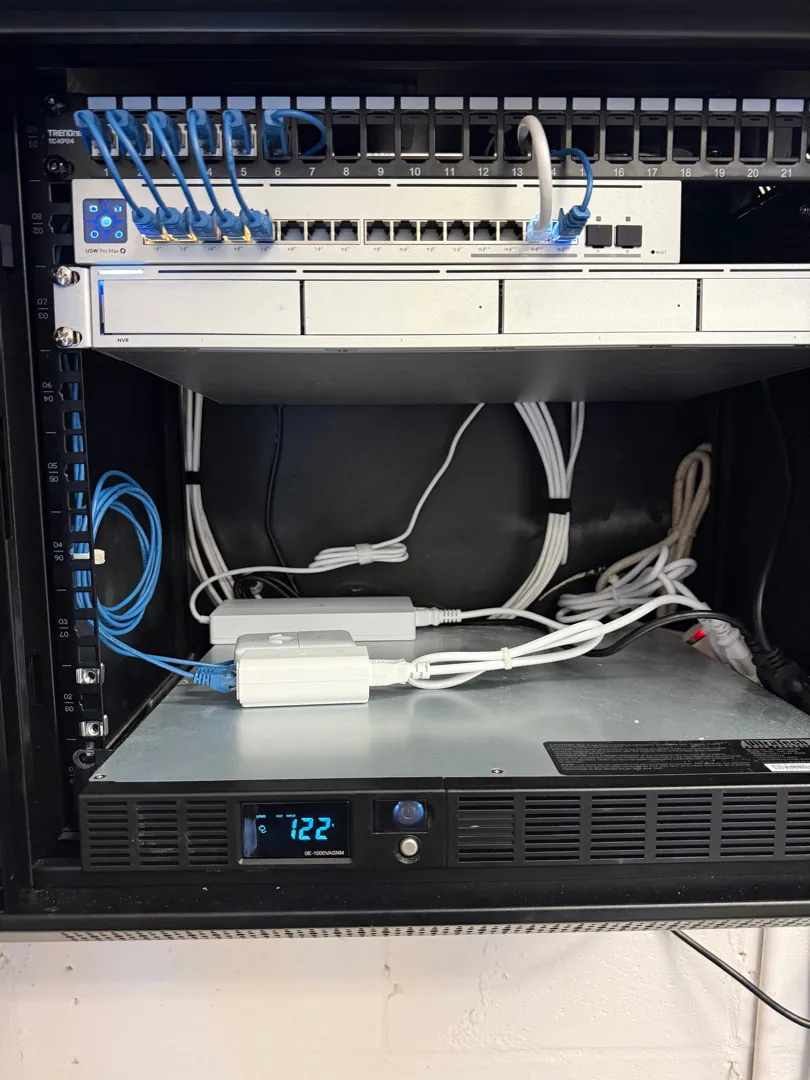

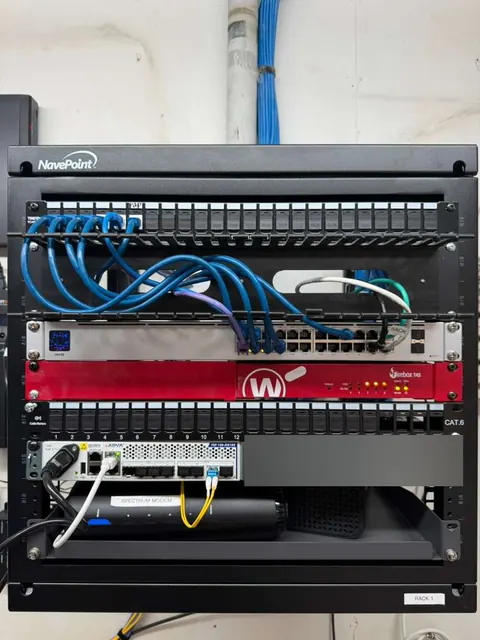

- 2 x 9U wall racks, 5 x 24-port patch panels and 48 keystones
- 11,000 ft of Cat6 supplied
Platforms & Manufacturers
Systems Delivered
