Case Study · Retail
Restaurant CCTV & Drive-Thru Monitoring System in Orlando, FL
20-camera IP system for a restaurant in Orlando, FL covering perimeter, dining room, kitchen and freezer, with an LPR camera and a live drive-thru feed.
Project Gallery
Inside the Installation
Project Overview

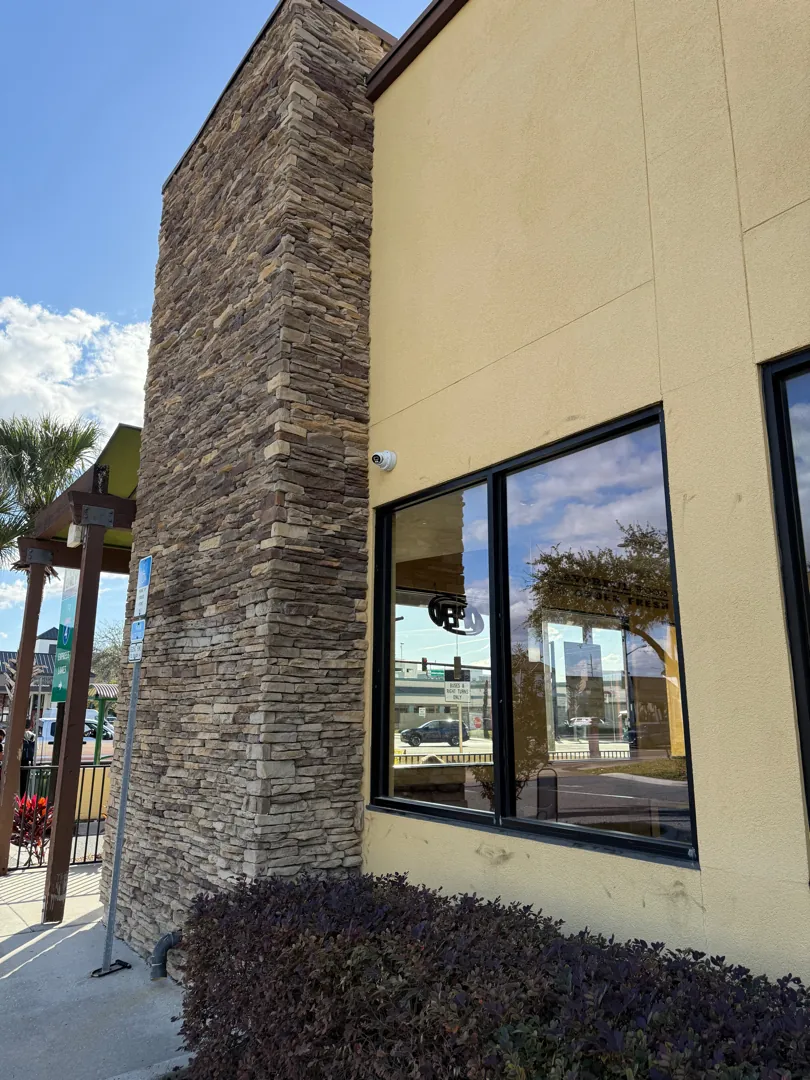

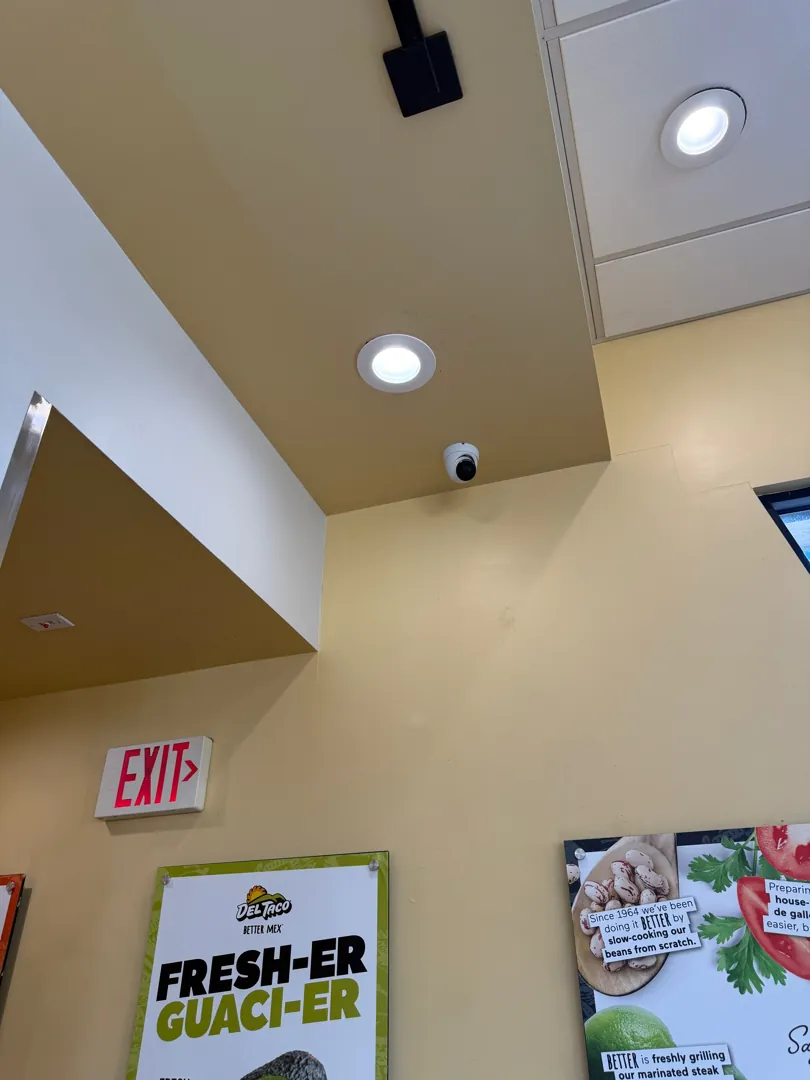

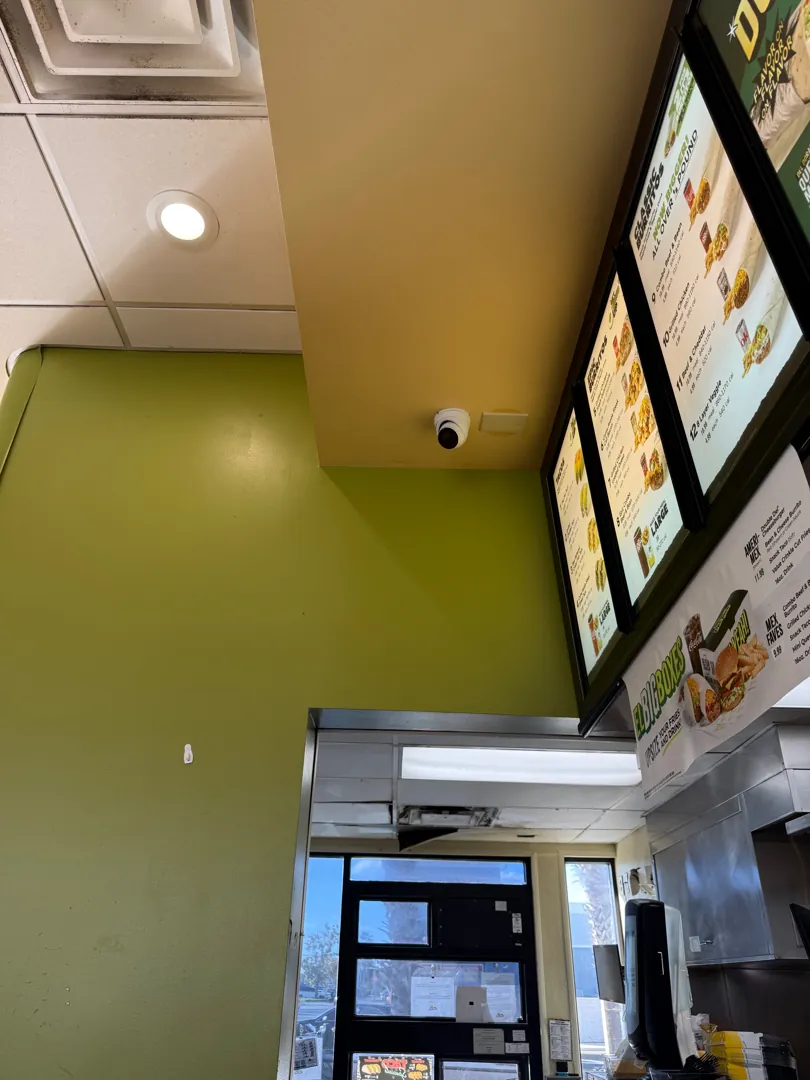

Replaced a legacy DVR system with a 20-camera IP system covering the perimeter, dining room, kitchen and freezer, plus an LPR camera, and delivered a live drive-thru feed to the attendant's monitor.
Services delivered on this project: Security Camera Systems and Network & Infrastructure.
Industry: Retail — see how we support retail facilities across Florida.
Verified Project Scope
- 20 IP cameras: 19 x 5MP with built-in audio (including a freezer camera) and 1 x 5MP LPR camera
- 32-channel AI NVR plus an 8-channel NVR with 2 x 6TB drives
- 16-port PoE+ switch
- 2 x 24-inch monitors with wall mount for the live drive-thru feed
- 65 ft HDMI run
- 3,000 ft of Cat6 supplied
- Legacy DVR and cameras removed
Systems Delivered
