Case Study · Hospitality
Multi-Building Fiber Backbone & Axis Camera Deployment in Key West, FL
OM4 fiber backbone between three resort buildings and the spa in Key West, FL, with Fluke-certified Cat6 plenum drops and seven Axis cameras.
LocationKey West, FL
IndustryHospitality
Primary ServiceFiber Optic Services
PlatformsAxis, Corning, Panduit NetKey
Project Gallery
Inside the Installation
Project Overview
Multi-visit program at a Key West resort: new OM4 fiber backbone between three buildings and the spa, fusion-spliced, terminated and certified, plus Fluke-certified Cat6 plenum drops for printers and cameras and seven Axis cameras. Crew traveled from Orlando for each phase.
Services delivered on this project: Fiber Optic Services, Structured Cabling and Security Camera Systems.
Industry: Hospitality — see how we support hospitality facilities across Florida.
Verified Project Scope
- 12-strand OM4 runs from the Building 1 IDF and Building 3 IDF to the Building 2 MDF (700 ft of OM4 supplied)

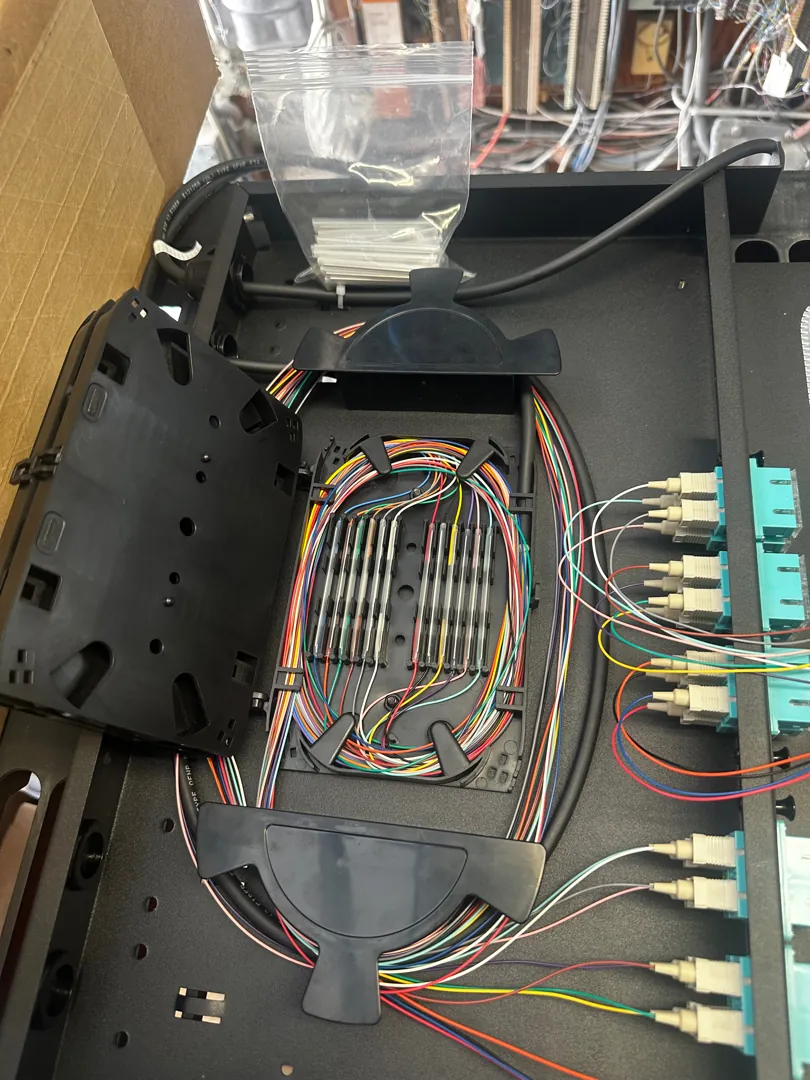

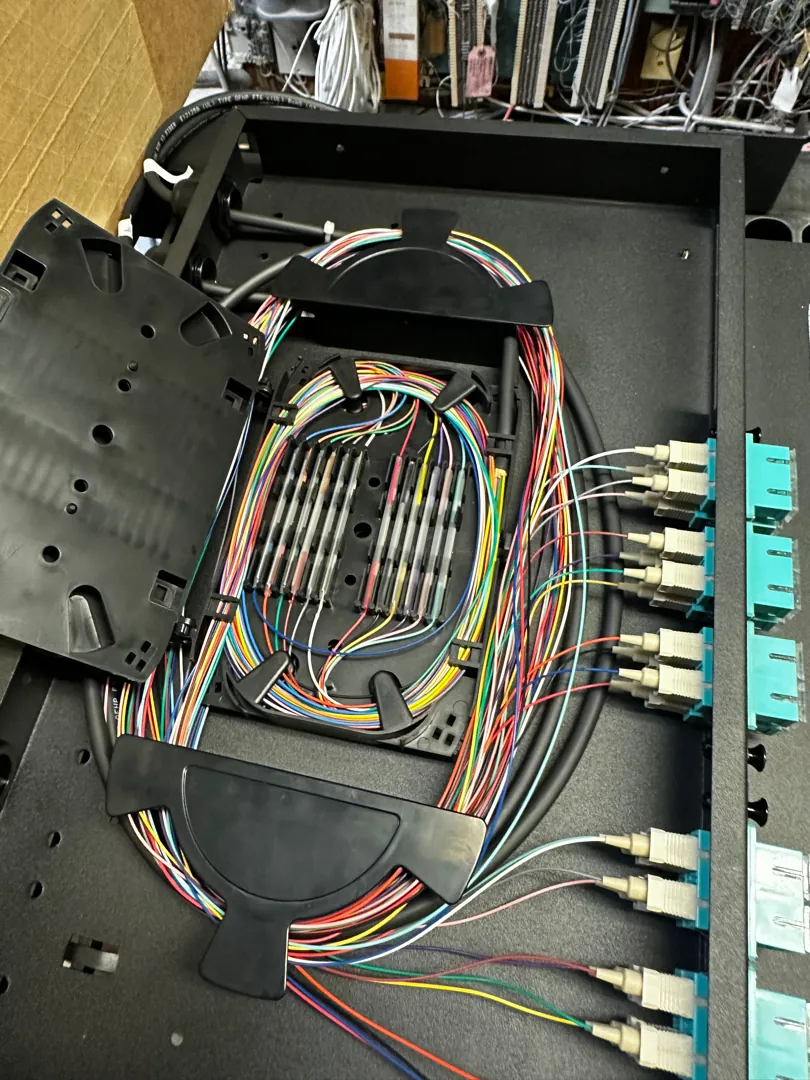

- Fusion splicing of all 12 strands at both ends

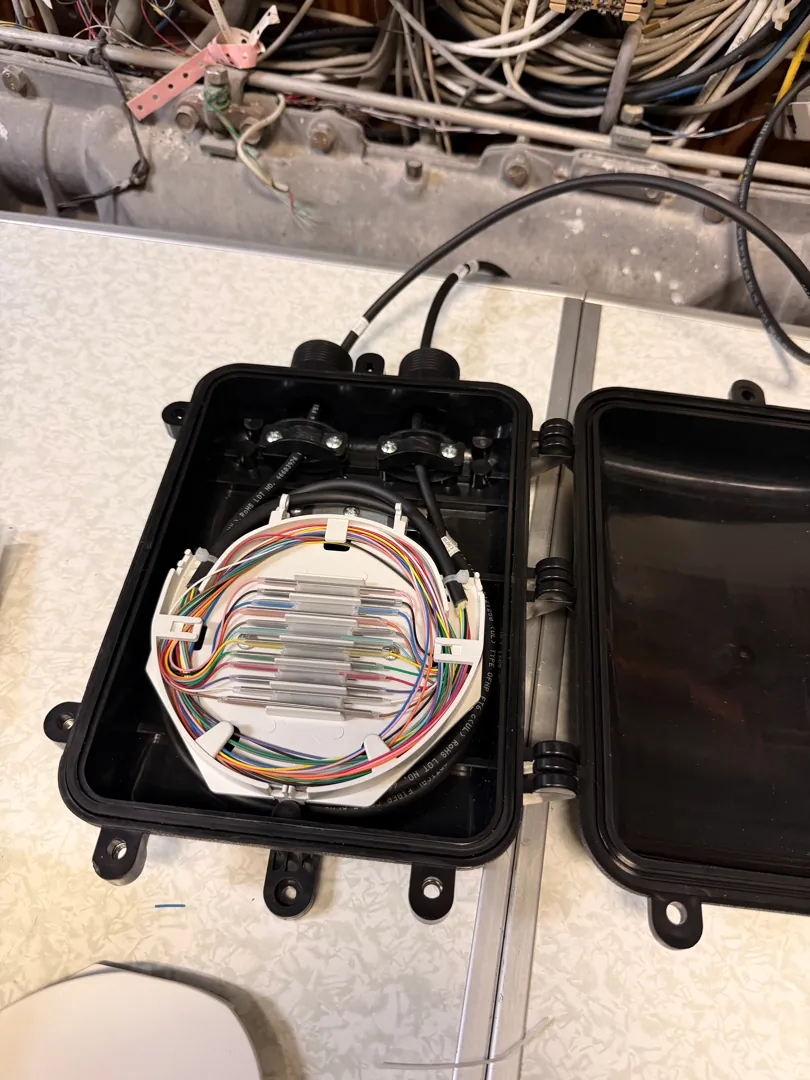

- 12-strand OM4 run from the MDF to the spa: 24 terminations plus 24 additional strands spliced at the MDF, with a new MDF fiber rack enclosure
- 8 Cat6 plenum drops (2 printer, 6 camera), Fluke-certified
- 1 Panduit NetKey 24-port patch panel
- 150 ft of Schedule 80 PVC
- 7 Axis cameras (4 M4317-PLVE 360-degree panoramic, 3 M3216-LVE)
- 2 Tripp Lite PoE switches with a DIN-rail power supply
Platforms & Manufacturers
AxisCorningPanduit NetKeyMohawkTripp LiteFluke (certification)
